RETTmobil 2022

Hall F Stands 1211, 1223, 1224 | 11 to 13 May in Fulda

Thank you for visiting our stand at the RETTmobil in Fulda. In the following we have compiled product information about our new products for you.

For enquiries, please use the contact form and register for our newsletter. With the PAX Newsletter you will receive further information about the sales launch.

P5/11 2.0 M, L, XL

The corpus

Here we present our new PAX P5/11 in the 2.0 version.

The PAX body is available in the sizes M, L and XL. In addition, there is a P5/11 version for air rescue in which we have completely dispensed with magnets and Velcro.

The universal magnet distribution allows the individual arrangement of the modules - according to the customer's wishes. The BETA version of the configurator gives you an idea of the configuration possibilities.

To the configurator

Available from 21.09.2022





PAX P5/11 2.0 M

Item number: 27604

Dimensions
Height: 52 cm
Wide: 40 cm
Depth: 16 cm
Capacity: 33,28 Liter
Weight: 3,06 to 3,15 KG
Materialien: PAX-Tec, PAX Rip-Tec
Colours: Red, blue, high-viz yellow, high-viz orange

PAX P5/11 2.0 L

Item number: 27603

Dimensions
Height: 52 cm
Wide: 40 cm
Depth: 22 cm
Capacity: 45,76 Liter
Weight: 3,25 KG
Material: PAX-Tec, PAX-Rip-Tec
Colours: Red, blue, high-viz yellow, high-viz orange

PAX P5/11 2.0 XL

Item number: 27854

Dimensions
Height: 52 cm
Wide: 40 cm
Depth: 26 cm
Capacity: 54,08 Liter
Weight: 3,62 KG
Material: PAX-Tec, PAX-Rip-Tec
Colours: Red, blue, high-viz yellow

PAX Emergency Backpack P5/11 2.0 - XL Air Ambulance

Item number: 27855

Dimensions

Height: 52 cm
Wide: 40 cm
Depth: 24 cm
Capacity: 49,92 Liter
Weight: 3,36 KG
Material
: PAX-Rip-Tec (Front PAX-Tec)
Colours: red, high-viz yellow

New features

  • Combination of high frequency welding and sewing
  • Rounded & reinforced corners
  • Stable feet
  • Easy to repair
  • optional hip belt system
  • stronger holding force of the magnets

PAX P5/11 2.0 Version Air Ambulance

In cooperation with a large German air rescue company, this backpack was developed in another version for air rescue. This concept solution was designed for loading in the helicopter, the modules are held in place here by easy-to-use covers. No Velcro or magnets, which are not permitted due to aviation regulations. The backpack is also a real lightweight. A back carrying system can also be installed here as an option.

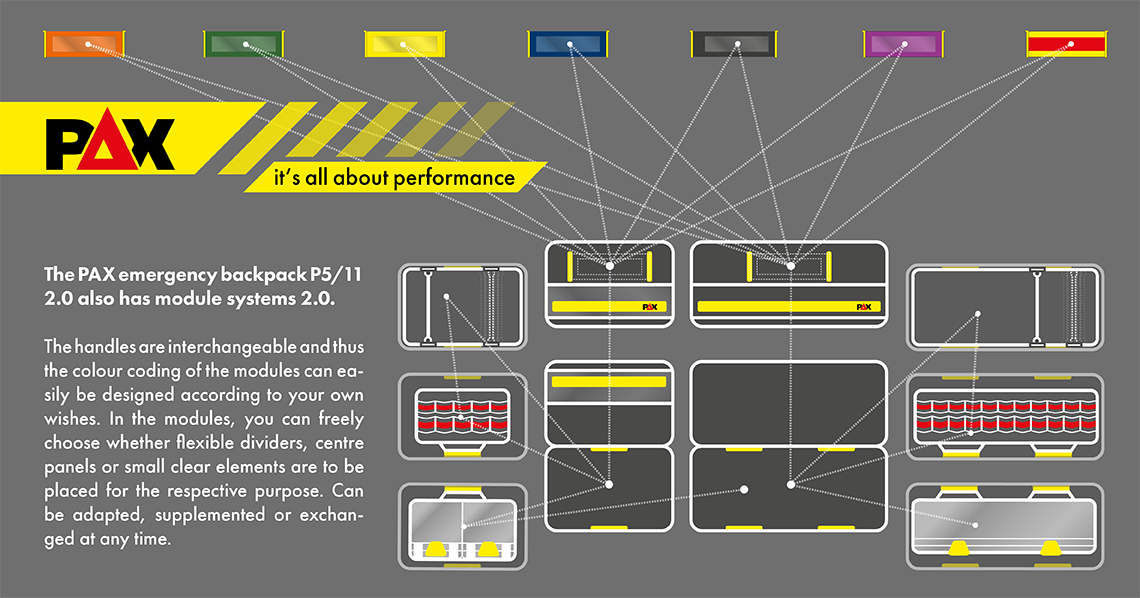

PAX see-through and functional modules

Individual colour and interior configuration of the inner pockets

In addition to the individual equipment of the see-through and function modules, the handle colours can be freely selected and several modules can be additionally customised in depth with centre panels and dividers. In the M version, centre panels can be integrated as a ceiling module and the lid modules Circulation and Airway are also available here. Centre panels can be placed in the XL corpus.

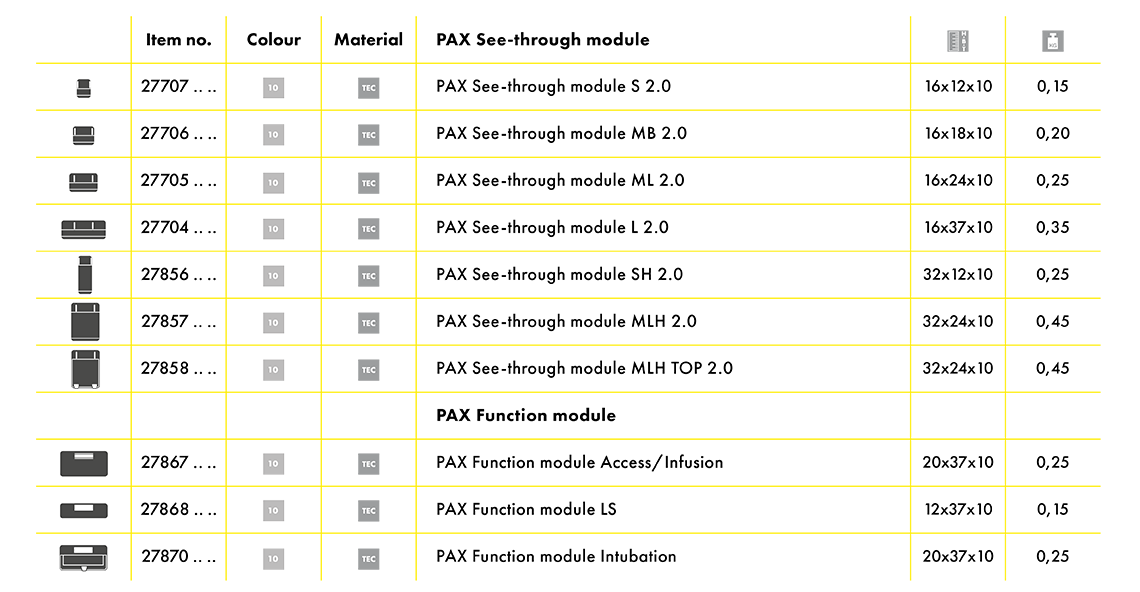

P5/11 2.0 Overview of modules

Cleaning and reflex

The PAX emergency backpack P5/11 2.0 has a smooth surface on all sides that is easy to clean and disinfect. The padded shoulder straps are made in the same way.
The reflective material is attached to 5 sides. The design of the backpack is based on EN20475 and reflects the required areas of high-viz colour (yellow in this case) and reflective material according to its front surface.

Emergency Backpack P5/11 2.0 Air Ambulance

Emergency Backpack P5/11 2.0 Air Ambulance

Zipper

The backpack is opened by means of the zip running around all four corners in the middle of the body along half the depth, resulting in two equal parts for holding modular bags. The centre wall, which is fixed in the middle of the halves, stands up perpendicular to the two body parts. An oxygen cylinder is fixed in the centre of the back corpus by means of wipeable straps.

The PAX P5/11 2.0 emergency backpack air ambulance has 2 circumferential zips. The body can be opened as desired.

Repair and sustainability

Should this robust emergency backpack require repair after a few years, all segments can be repaired or replaced thanks to the completely newly developed concept.

All components and assemblies can be exchanged and replaced on a modular basis. The P5/11 Gen2. has thus not only become more robust for use, but also offers attractive sustainability due to the resource conservation associated with the reparability: reliable and environmentally friendly. In some cases, this can even be done directly on site by the customer.

If a repair is carried out by PAX, a general overhaul will take place on request. The customer thus keeps his purchased product with the certainty of being able to use it reliably for years to come. The new, more stable and larger feet of the P5/11 Gen.2, for example, can be easily replaced in just a few steps. The handles are stitched and can be permanently replaced.





Newly developed PAX feet

For this model „PAX Ergo-Mat with integrated head fixation and neck support“, we attached a handle bar for transport. Our new, patented head-fixation system and the integrated neck support prevent the hyper-reclination of the cervical spine during transport.

Item number: 160875210
Dimensions: 202 x 97 cm
Weight: 5,30 KG

CE MD



Directly to the Online Shop





We combined especially light and robust materials to meet the requirements of the air rescue. The multi chamber double layer filling makes this mattress the nescessary stiffness. Because of the often worn ski boots we processed the material towards the patient as well. The handles are directly connected to the mattress to safe space and weight. An inlay supports the especially sensitive area of the neck.

Item number: 155585210
Dimensions: 200 x 60 cm
Weight: 2,53 KG

CE MD



Directly to the Online Shop





The PAX Vacuum Mattress - I-Mat - Handles is our entry-level product and is manufactured with the same PAX Care as all our products. The straight cut is reminiscent of an uppercase „I“ and optimised for use in the medicalsector. The PAX Vacuum Mattress - I-Mat - Handles is supplied with 8 loop-in handles and our 5 colourcoded fixation straps. The strap and carrying loop eyelets are recessed for better cleaning and the carrying handles are completely closed-pored. To avoid pressure points on the patient, the buckles of the PAX Fixation straps are placed on the outer sides of the mattress. The individually usable strap extension is also included in the scope of delivery of this model.

Item number: 155165210
Dimensions: 202 x 70 cm
Weight: 4,23 KG

CE MD



Directly to the Online Shop





The PAX Rescue Bag RTS AIR is distinguished by the consistent omission of Velcro in order to protect the safety-relevant ropes and straps for winching. With the all-round zip, the PAX Rescue Bag RTS AIR can be operated by only one person, even in adverse conditions. The internal lacing system in the head area and the colour-coded compression straps allow the PAX Rescue Bag to be quickly adjusted to the patient. The redundantly designed loop system for attaching the hanger to the helicopter for transport as an external load provides extra safety. Vertical rescue or abseiling is also possible and permitted. All loops and ropes are safely stowed in pockets.

Item number: 272490801
Dimensions: 60cm  x 210cm
Weight:
5,20 KG

CE MD



Directly to the Online Shop

PAX Rescue Bag Hanging System

PAX Roll-up stretcher LAS - tactical

Item number: 279355803

Identical design to the PAX LAS Stretcher - version in black/olive

Wide: 80cm
Depth: 200 cm
Weight: 5,2 KG

CE MD

PAX Vacuum pad Roll-up stretcher LAS - tactical

item number: 279480303

Identical in construction with PAX vacuum support LAS - version in black/olive

Dimensions
Wide:
68 cm
Depth:
197 cm
Weight: 3 Kg

CE MD

PAX transport backpack Roll-up stretcher LAS- tactical

Item number: 279490103

Transport backpack for LAS Roll up Stretcher. Double zip for quick removal.
Molle on the sides and front for attaching additional material, e.g. Molle bag vacuum pump hand.

Dimensions
Height: 83cm
Wide: 22 cm
Depth: 21,5
Weight: 1,4 Kg

CE MD





PAX Molle bag vacuum pump hand - tactical

Item number: 279500103

Molle bag for vacuum pump Hand can be attached to e.g. Transport RS Roll up Stretcher LAS tactical

Dimensions
Height: 36 cm
Wide:
14 cm
Depth:
1 cm

Weight: 0,1 Kg

CE MD

PAX Ergo Mat - tactical

Item number: 279510303

Identical in construction to the PAX Ergo Mat - in black/olive version and more robust upper material for tactical use.

Wide: 97 cm
Depth:
202 cm
Weight: 6,05 KG

CE MD





PAX Vacuum splint - rec - leg - tactical

Item numbe 279520303

Identical in construction to the PAX vacuum splint - rec leg - in black/olive design and more robust upper material for tactical use.

Wide: 65 cm
Depth:
107,5 cm
Weight: 1,3 KG

CE MD





PAX Vacuum splint - rec - arm - tactical

Artikelnummer: 279530303

Identical in construction to the PAX vacuum rail - rec arm - in black/olive finish and more robust upper material for tactical use.

Wide: 47 cm
Depth:
57 cm
Weight: 0,55 KG

CE MD





PAX Vacuum splint - rec - joint - tactical

Item number: 279540303

Identical in construction to the PAX vacuum splint - rec joint - in black/olive finish and more robust upper material for tactical use.

Wide: 46 cm
Depth: 64,5 cm
Weight: 0,6 KG

CE MD





PAX TQ Holster - tactical

Item number: 278112203

Ideal for extremely fast one-handed operation. The tourniquet is attached to the completely tear-off cover. This eliminates the need for time-consuming opening and removal.

Height: 16 cm
Wide: 6,5 cm
Depth: 2,5 cm
Weight: 0,05 KG

PAX IFAK - tactical M

Item number: 278102203

Our IFAK Tactical - M offers space for the most necessary equipment. With the help of the practical dispenser, disposable gloves can be taken out without opening the bag. The whole bag can be fastened via the Molle system.

Height: 18 cm
Wide: 13 cm
Depth:
6 cm
Weight: 0,15 KG





PAX IFAK - tactical L basic

Item number: 279552203

The IFAK bag offers enough space for first aid equipment. The scissors can be stored on the outside holder. Thanks to the Molle system, the bag can be individually attached to the equipment.

Height: 21,5 cm
Wide: 14 cm
Depth: 10 cm
Weight: 0,2 KG





PAX IFAK - tactical L

Item Number: 279562203

The IFAK - tactical L also has enough storage space for first aid and an external holder for the rescue shears. In addition, the bag has a quick-release system, which allows the bag to be removed from the equipment in one easy step.

Height: 21,5 cm
Wide: 14 cm
Depth: 10 cm
Weight: 0,22 KG







PAX Tragetuch light - tactical

Item number: 277564503

An extremely lightweight and small-packed sling that meets the requirements of DIN EN 1865-1 for slings.

Wide: 105 cm
Depth: 195 cm
Weight: 0,35 KG

 CE MD





PAX Roll-up stretcher light - tactical

Item number: 27957

Small and lightweight transport device for evacuating people from the danger zone. Thanks to the reinforcement at the bottom, the roll-up stretcher light can also be pulled. This allows the product to be operated by only one person.

Wide: 46 cm
Depth:
212 cm
Weight: 1,55 KG

 CE MD





PAX Warming Blanket - THX

Artikelnummer: 278165201

Active temperature management system to increase patient comfort. In combination with PAX Powerpack 60/1.

Dimension: 48 x 48 cm

CE MD





PAX Warming Blanket - THX 2.0

Item number: 279355803

Active temperature management system to increase the comfort of the patient. In combination with PAX Powerpack 60/1. With additional coverage of the arm-sensitive shoulder region.



Item number: 279355803
Dimensions: approx. 43 cm x 52 cm

CE MD

PAX Power Pack - 60/1

Item number: 278170000

60 Watt 12 Volt.

CE MD
